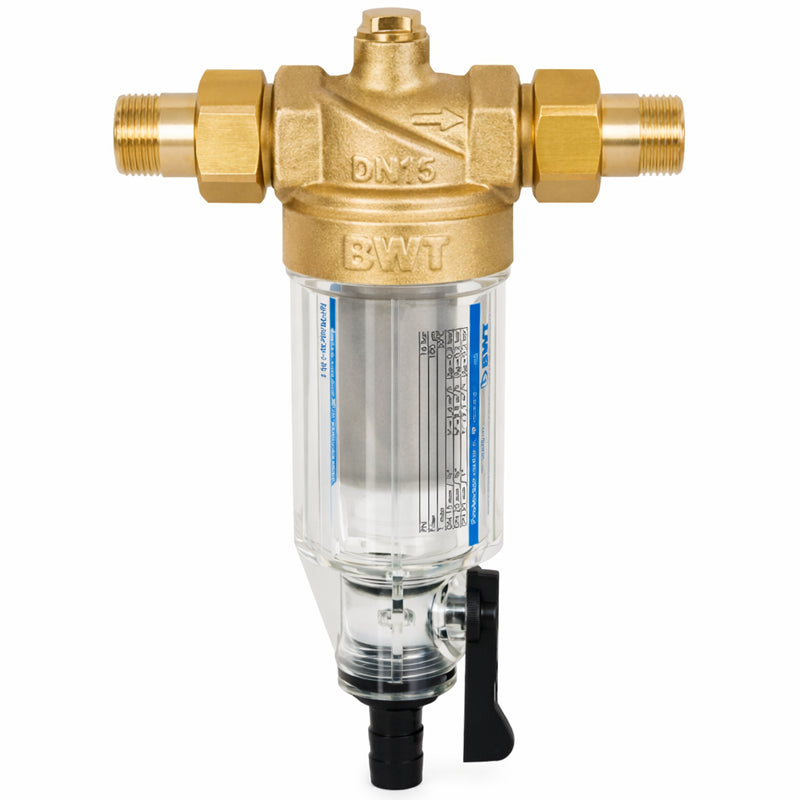

BWT Protector Mini C/R 1/2" Compact Rinse Water Filter
Part No.: 10523
Product Overview
The BWT Protector Mini C/R 1/2" is a compact rinse-type domestic water filter designed for cold water applications. Installed upstream of water-using equipment, it protects plumbing systems, fittings, boilers, and appliances from malfunction and corrosion caused by coarse impurities.
A durable 100 µm stainless steel filter element removes rust, sand, and debris while maintaining consistent water flow. The integrated rinse valve allows easy cleaning to support long service life.
Features & Benefits
- Compact rinse filter for cold water installations
- Removes rust, sand, and particles larger than 100 µm
- Stainless steel filter element for durability
- Integrated rinse valve for easy cleaning
- Brass top section with manometer connection
- Vertical or horizontal installation
- Protects plumbing and water-using appliances
Specifications
- Brand: BWT
- Series: Protector Mini
- Product Type: Rinse-type water filter
- MPN / Part Number: 10523
- Connection Size: 1/2"
- Application: Cold water (C/R)
- Filtration Rating: 100 µm
- Max. Pressure: 16 bar (232 psi)
- Max. Water Temperature: 30 °C (86 °F)
- Installation Orientation: Horizontal or vertical
Installation Tips
- Install in the cold water line upstream of protected equipment.
- Always install shut-off valves before and after the filter.
- Observe the flow direction arrows on the housing.
- Protect from frost, UV exposure, and heat sources.
- Rinse and inspect the filter regularly.
Technical Details:
| BWT PROTECTOR MINI C/R | 1/2" (100 µm) | 1/2" (30 µm) |
|---|---|---|
| Connection width (DN) | 15 | 15 |
| Flow rate m³/h (gpm) |
1.6 (7) |
1.6 (7) |
| Filter mesh size (µm) | 100 | 30 |
| Operating pressure min./max. bar (psi) |
1.5–16 (21.7–232) |
1.5–16 (21.7–232) |
| Dimensions H × W mm |
164 × 133 | 164 × 160 |
| Order no. | 10523 | 10558 |
