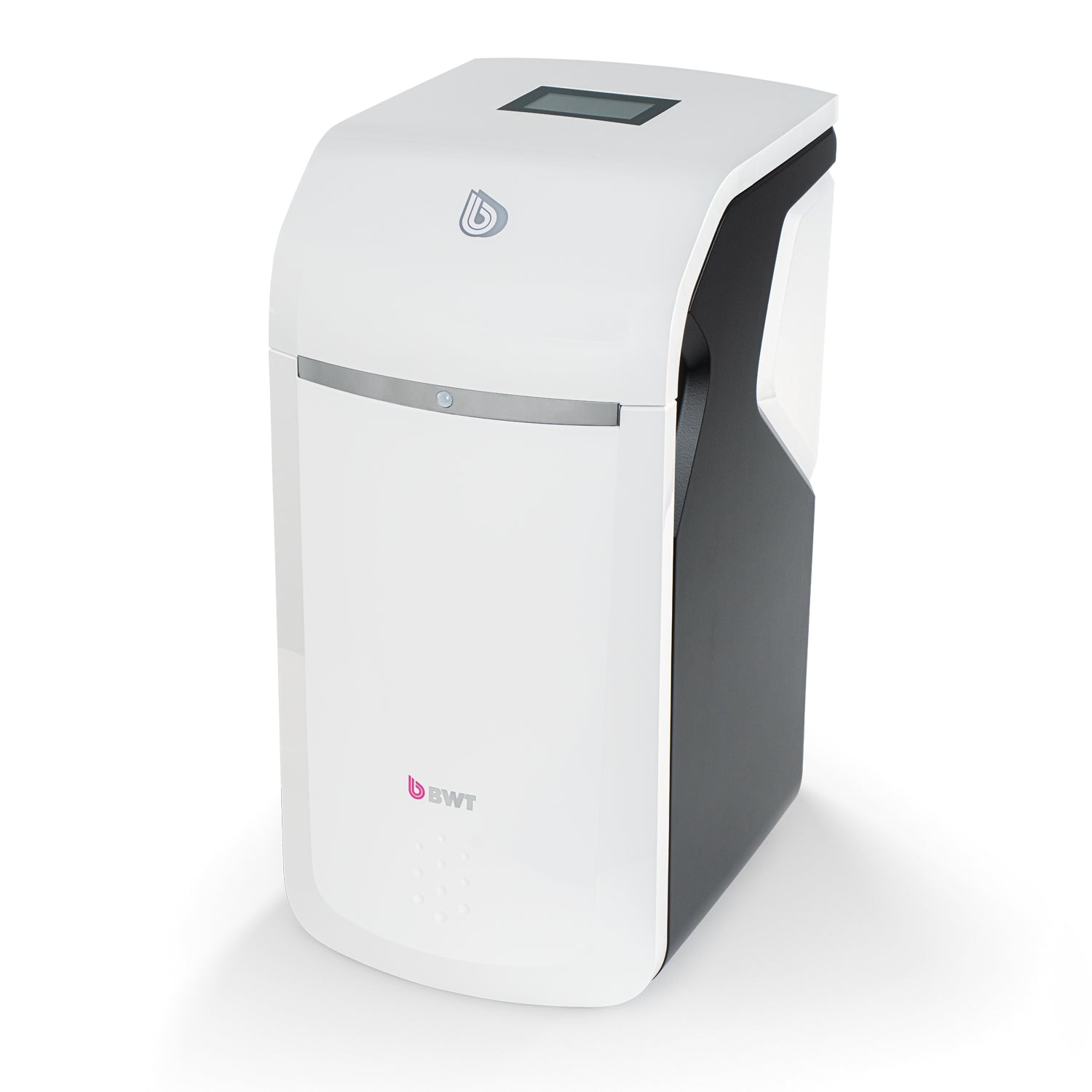

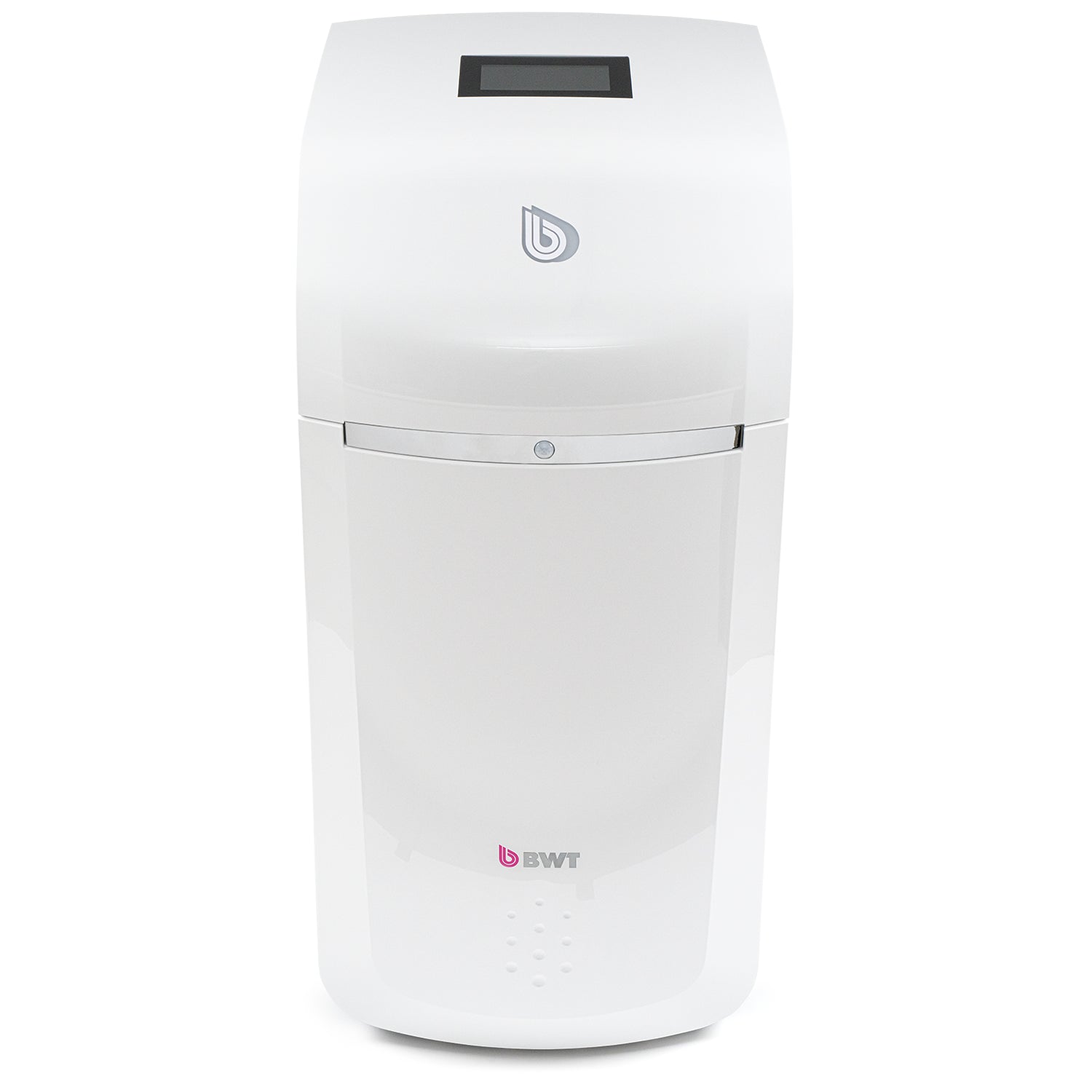

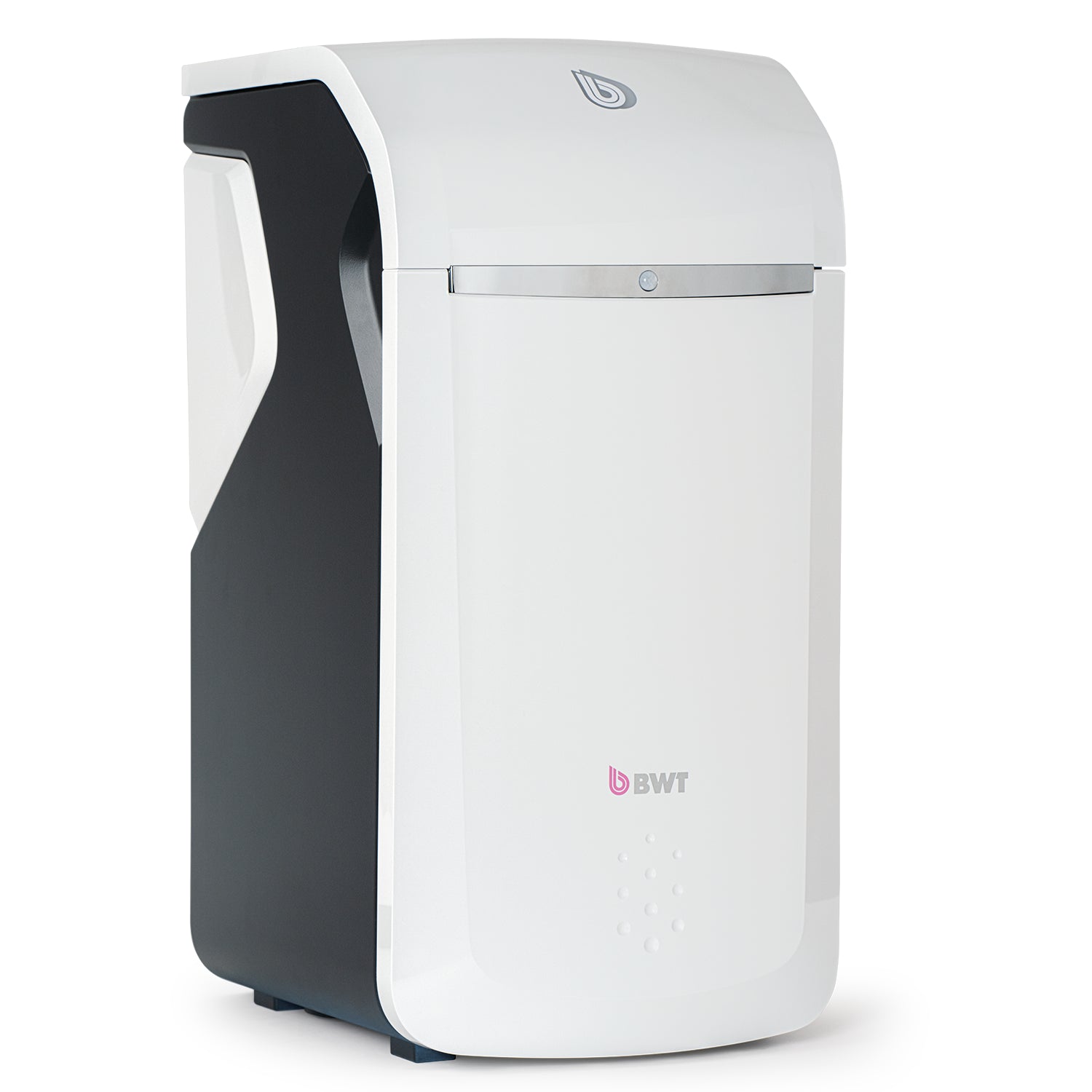

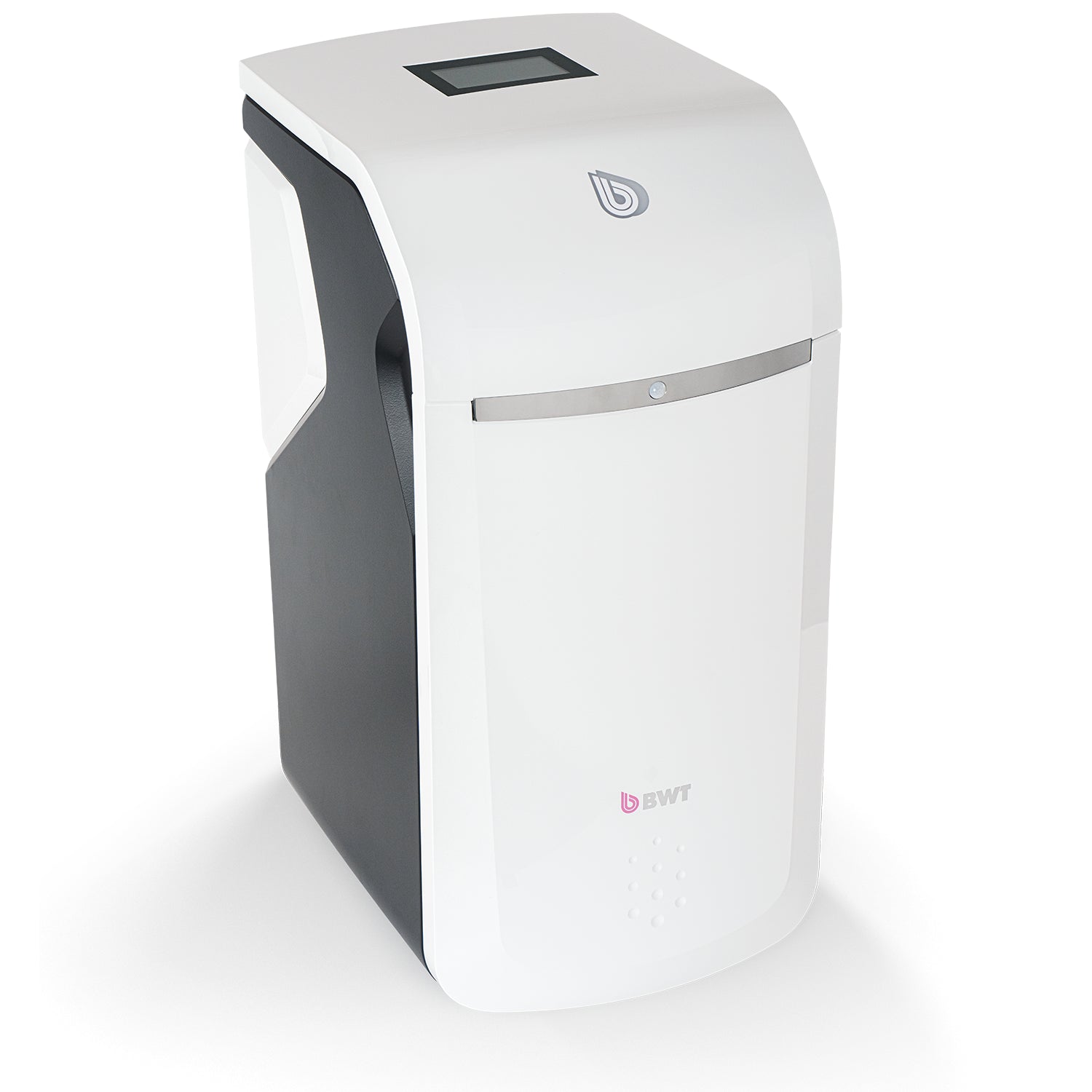

BWT Perla Seta Duplex Water Softener 125686700
Product Overview
The BWT Perla Seta Duplex Water Softener 125686700 is a premium whole-home water softening system designed for larger homes, higher water consumption, multiple bathrooms, rainfall showers, and hard water conditions. It delivers BWT Pearl Water throughout the home with the capacity, comfort, and control expected from a luxury water treatment system.
The Perla Seta uses a duplex ion exchange design with two softening columns. This helps maintain soft water availability while adapting to changing household water demand. For homes where several fixtures may be used at the same time, the duplex design supports showers, baths, laundry, dishwashers, water heaters, boilers, and connected appliances.
Hard water can leave limescale on fixtures, reduce appliance efficiency, shorten the life of water heaters and boilers, and make cleaning more difficult. By reducing hardness minerals such as calcium and magnesium, the BWT Perla Seta helps protect plumbing systems, bathroom surfaces, glassware, appliances, and heating equipment from scale-related wear and buildup.
The system includes a 5-inch multi-touch display, automatic motorized blending, dry salt storage, ultrasonic salt level monitoring, smart connectivity, and BWT Best Water App compatibility. It also includes advanced AQA safety features, including AQA Watch, AQA Safe, AQA Stop, and optional AQA Guard wireless water sensors for expanded leak monitoring.
Features & Benefits
- ✓ Duplex Ion Exchange Technology Two softening columns support continuous Pearl Water availability and high-capacity whole-home water softening.
- ✓ High-Capacity Pearl Water Performance Up to 50 L/min flow capacity makes the Perla Seta suitable for larger homes, multiple bathrooms, and high-demand water use.
- ✓ Premium Limescale Protection Helps reduce scale buildup in pipes, fixtures, boilers, water heaters, dishwashers, washing machines, and coffee equipment.
- ✓ Smart 5-Inch Multi-Touch Display Clear on-unit controls make setup, monitoring, operating data, and maintenance reminders easier to manage.
- ✓ BWT Best Water App Compatible Supports connected monitoring, system status updates, salt reminders, and maintenance notifications where available.
- ✓ Dry Salt Storage Keeps salt storage drier and more hygienic by preparing brine only when required for regeneration.
- ✓ Ultrasonic Salt Level Monitoring The Easy Fill cover measures salt level without contact and helps notify users when salt should be refilled.
- ✓ Motorized Blending Valve Automatically helps maintain the desired outlet water hardness level for consistent comfort and system performance.
- ✓ AQA Watch Monitoring Detects prolonged low-flow conditions that may indicate small leaks, dripping taps, or running toilet cisterns.
- ✓ AQA Safe Protection Helps reduce risk of water damage related to wastewater handling during certain power-loss conditions.
- ✓ AQA Stop Function Can shut off the water supply downstream of the softener when triggered by configured safety functions.
- ✓ Optional AQA Guard Wireless Sensors Supports up to 10 optional wireless leak sensors for added protection in bathrooms, laundry rooms, kitchens, and mechanical spaces.
Product Applications
- Residential whole-home water softening
- Luxury homes
- Large family homes
- Multi-bathroom homes
- Domestic hot water protection
- Boiler and water heater protection
- Laundry and appliance protection
- Premium bathroom and kitchen protection
- Light commercial water softening, subject to manufacturer review
Ideal For
- Larger homes with high water consumption
- Homes with multiple bathrooms
- Rainfall showers and luxury bathroom fixtures
- Hard water areas with heavy limescale buildup
- Homeowners wanting premium whole-home water softening
- Customers who want app-connected water treatment monitoring
- Homes with expensive appliances, boilers, or water heaters
- Households wanting softer laundry, smoother hair, and easier cleaning
- Premium residential renovations and new builds
- Installations where leak monitoring and smart water protection are important
What's Included
- BWT Perla Seta Duplex Water Softener
- Integrated regenerative salt storage container
- Two ion exchange softening columns
- Multi-info touch display
- Motorized blending valve
- Easy Fill technology cover with LED status display
- Brine suction system
- Wastewater connection
- Water inlet with non-return valve
- Water outlet
- Rinsing water hose
- Overflow hose
- Fasteners
- Floor sensor where supplied by market package
- BWT AQA Test hardness testing kit where supplied by market package
- BWT Pearl Water check strips where supplied by market package
- Connection set where supplied by market package
- Connection fitting with integrated bypass where supplied by market package
- BWT installation set where supplied by market package
- IoClean cleaning tablet where supplied by market package
Specifications
| Specification | Details |
| Brand | BWT |
| Model | Perla Seta |
| Part Number / MPN | 125686700 |
| Product Type | Duplex whole-home water softener |
| Softening Technology | Ion exchange |
| System Design | Duplex / two-column softening system |
| Primary Application | Whole-home drinking and service water softening |
| Nominal Connection Width | DN 32 |
| Connection Type | G 1 1/4" |
| Nominal Capacity | 2 x 18 m³ x °dH |
| Nominal Flow Rate | 3.0 m³/h / 13.2 gpm |
| Pearl Water Capacity | Up to 50 L/min / 13.2 gpm |
| Operating Flow | 1.7 m³/h / 7.5 gpm |
| Operating Pressure | 2 - 8 bar / 29 - 116 psi |
| Recommended Operating Pressure | 3 - 6 bar / 44 - 87 psi |
| Nominal Pressure | PN 10 |
| Application Range | 6 - 8 residential units / 12 - 20 people |
| Ion Exchange Material | 2 x 6.2 L / 2 x 1.64 gal |
| Maximum Salt Storage | 32 kg / 70.5 lb |
| Salt Use Per 100% Regeneration | Approx. 0.76 kg / 1.68 lb |
| Rinse Water Per 100% Regeneration | Approx. 40 L / 10.6 gal at 4 bar |
| Regeneration Duration | Approx. 50 minutes per ion exchange tank |
| Water Temperature | 5 - 25°C / 41 - 77°F |
| Ambient Temperature | 5 - 40°C / 41 - 104°F |
| Power Supply | 100 - 240 V / 50 - 60 Hz |
| Unit Voltage | 24 VDC |
| Power During Operation | 5.6 W |
| Maximum Power During Regeneration | 40 W |
| Fault Message Output | 24 VDC / 0.5 A max. |
| Protection Class | IP54 |
| Dimensions | 797 mm H x 394 mm W x 505 mm D / 31.4" H x 15.5" W x 19.9" D |
| Clearance to Open Technology Cover | 400 mm / 15.7" |
| Minimum Drain Connection | DN 40 |
| Operating Weight When Filled | Approx. 88 kg / 194 lb |
| Shipping Weight | Approx. 44 kg / 97 lb |
| Colour | White / black cabinet |
| Certifications | DVGW / DIN referenced model family |
| Country of Origin | Germany / Austria, subject to supply channel |
| Warranty | Manufacturer warranty; regional terms may vary |
Installation Tips
Install the BWT Perla Seta in a frost-protected mechanical room, utility room, or service area with a flat, level floor. The installation area should be protected from chemicals, solvents, fumes, and direct environmental exposure.
A protective pre-filter should be installed upstream of the water softener to help prevent dirt, sediment, and corrosion particles from entering the system. A pressure reducer may be required if incoming water pressure exceeds the approved operating range.
The system requires a nearby drain connection, suitable wastewater routing, and a separate electrical power supply. The rinsing water hose and overflow hose must be routed correctly, must not be restricted, and must maintain the required air gap at the drain connection.
Adequate space should be left above the unit so the Easy Fill cover can open fully for salt refilling. The installation should also allow service access to the front, top, inlet, outlet, drain, and electrical connection areas.
For connected features, confirm suitable GSM reception, Wi-Fi, LAN access, or the intended communication method at the installation location. Optional AQA Guard wireless water sensors can be installed in higher-risk locations for added leak monitoring.
Professional installation is strongly recommended. Local plumbing codes, drinking water regulations, backflow requirements, and drain air gap requirements must be followed.
Frequently Asked Questions
Q: What is the BWT Perla Seta 125686700?
A: The BWT Perla Seta 125686700 is a premium duplex whole-home water softener designed to reduce water hardness and provide high-capacity Pearl Water for larger homes.
Q: Is the BWT Perla Seta good for large homes?
A: Yes. The Perla Seta is designed for high water demand and is suitable for larger homes, multiple bathrooms, luxury showers, and households with heavy water use.
Q: What does a duplex water softener mean?
A: A duplex water softener uses two softening columns. This helps maintain soft water availability while one column regenerates or adjusts to water demand.
Q: What is the flow rate of the BWT Perla Seta?
A: The Perla Seta provides up to 50 L/min of Pearl Water capacity and has a nominal flow rate of 3.0 m³/h.
Q: How much salt does the BWT Perla Seta hold?
A: The integrated salt storage container holds up to 32 kg / 70.5 lb of softener salt.
Q: Does the Perla Seta help protect water heaters and boilers?
A: Yes. By reducing hardness minerals, the system helps limit limescale buildup that can reduce efficiency and service life in water heaters, boilers, and connected appliances.
Q: Does the BWT Perla Seta connect to an app?
A: Yes. The system supports BWT Best Water App functionality where available, including status information, reminders, and connected monitoring features.
Q: Does the BWT Perla Seta have leak protection?
A: The Perla Seta includes AQA safety features such as AQA Watch, AQA Safe, and AQA Stop. Optional AQA Guard wireless sensors can expand leak monitoring coverage.
Q: What maintenance does the Perla Seta require?
A: The system requires routine inspections, salt refilling, cleaning, and periodic professional maintenance to maintain performance, hygiene, and safe operation.
Q: Does the Perla Seta make water safe to drink?
A: The Perla Seta is designed for partial softening of drinking and service water when installed on suitable potable water supplies and maintained according to applicable requirements.
Q: Can the Perla Seta be used commercially?
A: It may be suitable for selected light commercial applications, but commercial use should be reviewed and approved by a qualified BWT water treatment professional.
Q: What is the difference between BWT Perla and BWT Perla Seta?
A: The Perla Seta is the higher-capacity duplex model, designed for greater water demand and larger homes compared with standard Perla configurations.
