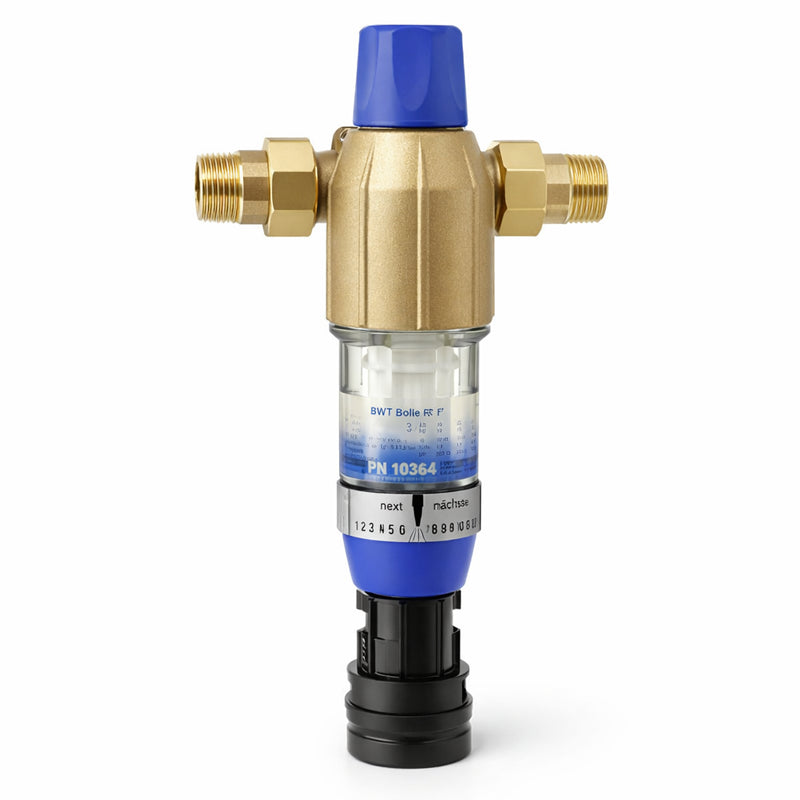

BWT Bolero RF 1" Backwash Water Filter
Part No.: 10365
Product Overview
The BWT Bolero RF 1" Backwash Water Filter is a compact, high-performance domestic whole-house water filter designed to protect drinking and service water systems from sediment-related damage. Installed at the main water inlet, it removes rust particles, sand, metal chips, and similar impurities that enter water systems during installation work, repairs, or normal operation.
This model features a manual backwash filtration system with a 90 µm filter cloth, allowing contaminants to be flushed out during routine backwashing without disposable cartridges. Its compact design supports horizontal or vertical installation.
Features & Benefits
- Whole-house sediment filtration for domestic water systems
- Removes rust, sand, chips, and coarse particles > 90 µm
- Manual backwash cleaning with reusable filter element
- No disposable cartridges required
- Compact design for horizontal or vertical installation
- Transparent housing for visual inspection
- Integrated date ring for maintenance scheduling
- Brass top section for durability and corrosion resistance
- Slip-clutch backwash knob prevents mechanical damage
Specifications
- Brand: BWT
- Series: Bolero RF
- Product Type: Manual backwash water filter
- MPN / Part Number: 10365
- Connection Size: 1" (DN25)
- Filtration Rating: 90 µm
- Flow Rate @ Δp 0.2 bar: 3.5 m³/h (15.4 gpm)
- Flow Rate @ Δp 0.5 bar: 5.0 m³/h (22 gpm)
- Operating Pressure: 2.5–16 bar (36.2–232 psi)
- Installation Orientation: Horizontal or vertical
- Pressure Reducer: Not included
Installation Tips
- Install after the water meter on the main incoming line.
- Ensure clearance for manual backwashing and inspection.
- Connect the backwash outlet to an appropriate drain.
- Protect from frost, UV exposure, and heat above 40 °C.
- Backwash regularly based on local water quality.
Technical Details
| BWT BOLERO RF/HWS | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
|---|---|---|---|---|---|
| Connection width (DN) | 20 | 25 | 32 | 40 | 50 |
| Flow rate @ Δp = 0.2 bar (2.9 psi) m³/h (gpm) |
3 (13.2) |
3.5 (15.4) |
4 (17.6) |
10.5 (46.2) |
11 (48.4) |
| Flow rate @ Δp = 0.5 bar (7.3 psi) m³/h (gpm) |
4 (17.6) |
5 (22) |
6 (26.4) |
15.5 (68.2) |
15.5 (68.2) |
| Filter mesh size (µm) | 90 | ||||
| Operating pressure min./max. bar (psi) |
2.5–16 (36.2–232) |
||||
| Dimensions H × W mm |
330 × 184 | 330 × 184 | 330 × 203 | 460 × 240 | 460 × 260 |
| Order no. RF | 10364 | 10365 | 10366 | 10367 | 10368 |
| Order no. HWS | 10369 | 10370 | 10371 | 10372 | 10373 |
