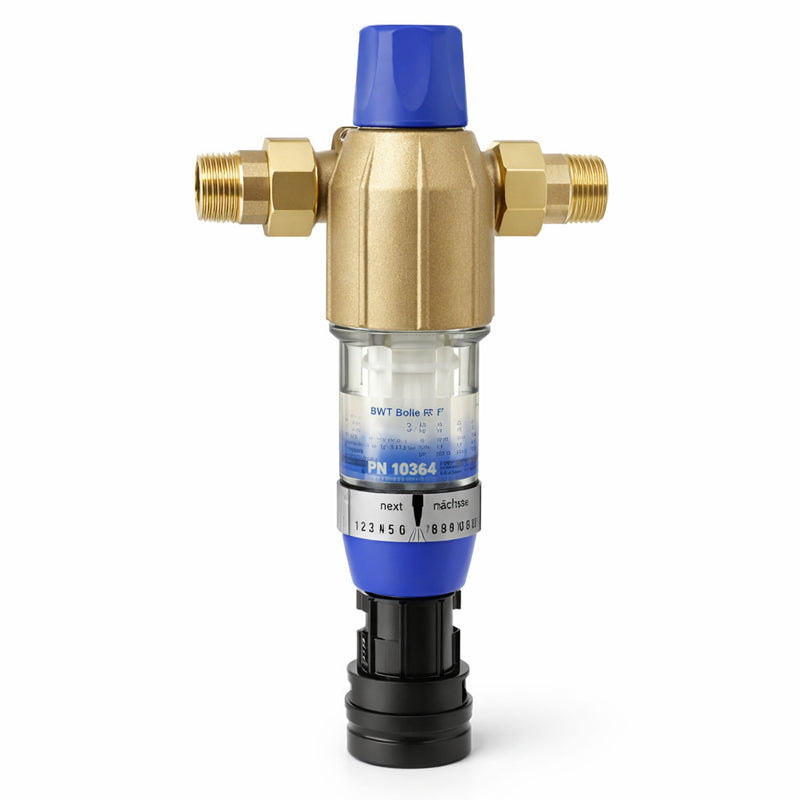

BWT Bolero RF 1-1/4" Backwash Water Filter
Part No.: 10366
Product Overview
The BWT Bolero RF 1-1/4" Backwash Water Filter is a high-capacity whole-house sediment filter designed for domestic water systems with higher flow demands. Installed at the main water inlet, it removes rust particles, sand, metal chips, and coarse debris that can damage plumbing and appliances.
This model features a manual backwash filtration system with a 90 µm reusable filter element, allowing contaminants to be flushed out without disposable cartridges. The robust design supports both horizontal and vertical installation.
Features & Benefits
- Whole-house sediment filtration for higher flow systems
- Removes rust, sand, and particles larger than 90 µm
- Manual backwash cleaning with reusable filter element
- No disposable cartridges required
- Supports horizontal or vertical installation
- Transparent housing for easy inspection
- Integrated date ring for maintenance tracking
- Durable brass filter head
- Slip-clutch backwash knob protects internal components
Specifications
- Brand: BWT
- Series: Bolero RF
- Product Type: Manual backwash water filter
- MPN / Part Number: 10366
- Connection Size: 1-1/4" (DN32)
- Filtration Rating: 90 µm
- Flow Rate @ Δp 0.2 bar: 4.0 m³/h (17.6 gpm)
- Flow Rate @ Δp 0.5 bar: 6.0 m³/h (26.4 gpm)
- Operating Pressure: 2.5–16 bar (36.2–232 psi)
- Installation Orientation: Horizontal or vertical
- Pressure Reducer: Not included
Installation Tips
- Install after the water meter on the main incoming line.
- Ensure clearance for manual backwashing.
- Connect the backwash outlet to an approved drain.
- Protect from frost, UV exposure, and excessive heat.
- Backwash regularly based on local water quality.
Technical Details:
| BWT BOLERO RF/HWS | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
|---|---|---|---|---|---|
| Connection width (DN) | 20 | 25 | 32 | 40 | 50 |
| Flow rate @ Δp = 0.2 bar (2.9 psi) m³/h (gpm) |
3 (13.2) |
3.5 (15.4) |
4 (17.6) |
10.5 (46.2) |
11 (48.4) |
| Flow rate @ Δp = 0.5 bar (7.3 psi) m³/h (gpm) |
4 (17.6) |
5 (22) |
6 (26.4) |
15.5 (68.2) |
15.5 (68.2) |
| Filter mesh size (µm) | 90 | ||||
| Operating pressure min./max. bar (psi) |
2.5–16 (36.2–232) |
||||
| Dimensions H × W mm |
330 × 184 | 330 × 184 | 330 × 203 | 460 × 240 | 460 × 260 |
| Order no. RF | 10364 | 10365 | 10366 | 10367 | 10368 |
| Order no. HWS | 10369 | 10370 | 10371 | 10372 | 10373 |
