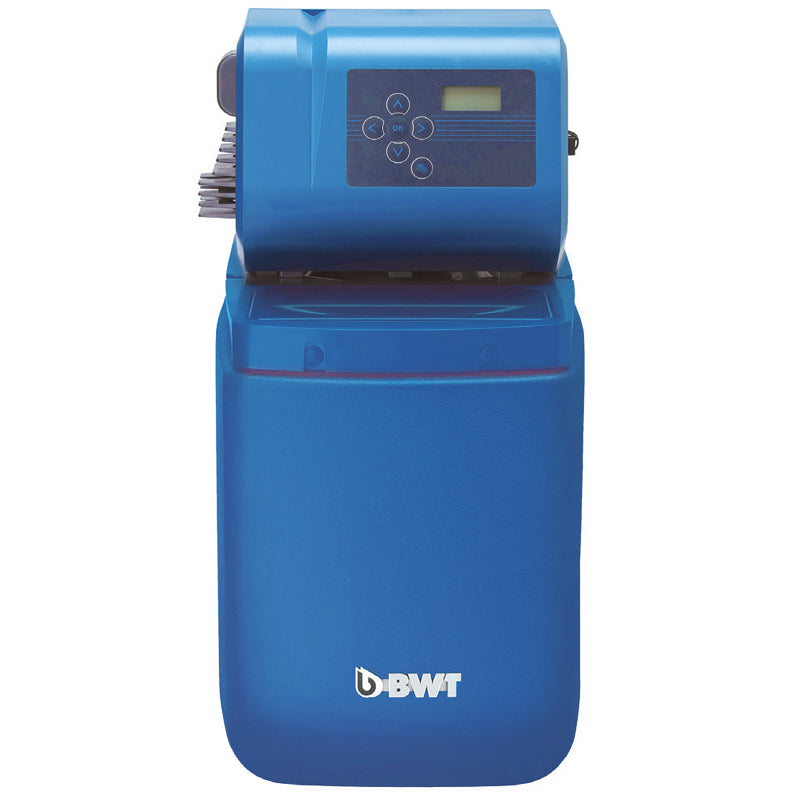

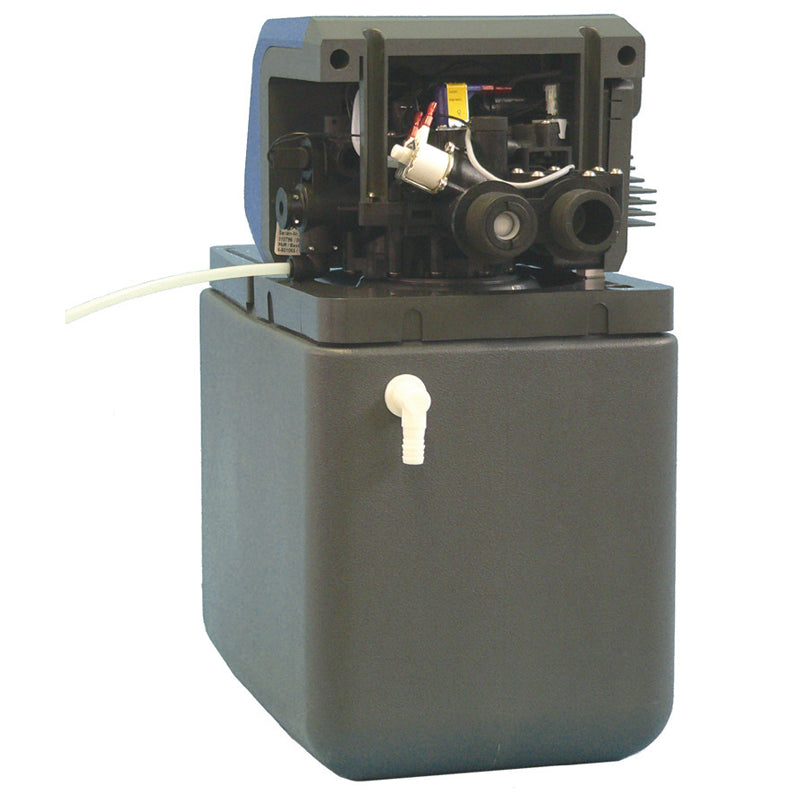

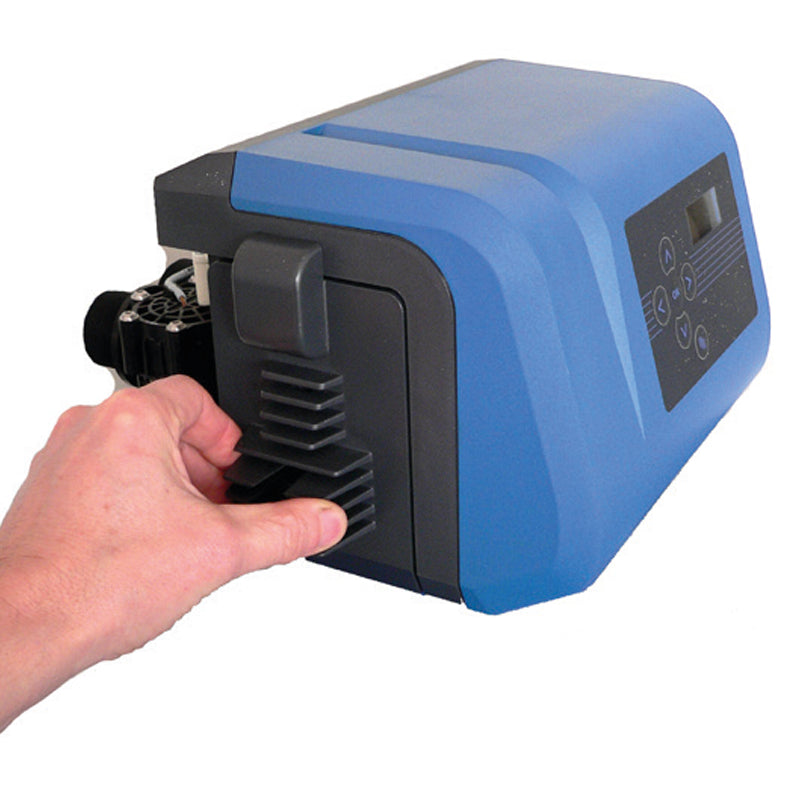

Bewamat 10 A Simplex Water Softener – Intelligent Quantity - Controlled Regeneration
Product Overview
The Bewamat 10 A Simplex Water Softener (Order No. 12563) is a compact, high-efficiency water softening system designed for residential and light commercial applications requiring reliable scale protection and reduced operating costs.
Equipped with intelligent quantity-dependent regeneration, the Bewamat 10 A regenerates only when its actual softening capacity is reached. This minimizes salt consumption, reduces water waste, and lowers operating expenses. During each regeneration cycle, the ion exchange resin is automatically disinfected, ensuring hygienic operation and extended resin life.
Softened water improves cleaning performance, reduces detergent usage, and prevents limescale buildup that can increase energy consumption and damage heating equipment.
Features & Benefits
- Intelligent quantity-dependent regeneration reduces salt and water usage
- Automatic resin disinfection during every regeneration cycle
- Compact design ideal for residential and light commercial installations
- Protects boilers, heaters, and plumbing from limescale buildup
- Improves detergent efficiency and cleaning performance
- Reduces energy losses caused by scale formation
- Durable construction for long-term reliability
Specifications
- Model: Bewamat 10 A
- Order Number: 12563
- System Type: Simplex Water Softener
- Regeneration Type: Quantity-dependent
- Nominal Capacity: 20 m³ × °dH (3.6 mol)
- Flow Rate (EN 14743): 1.4 m³/h (6.1 gpm)
- Operating Pressure: 2 – 8 bar (29 – 116 psi)
- Salt Tank Capacity: 14 kg | 30.9 lbs
- Salt Consumption per Regeneration: 1 kg | 2.2 lbs
- Dimensions (H × W × D): 530 × 290 × 430 mm
Installation Tips
- Install upstream of water heaters and sensitive appliances
- Ensure proper drainage for regeneration discharge
- Size the system based on daily water demand and hardness
- Use high-purity water softener salt for optimal performance
Technicals:
| Model | Bewamat 10A | Bewamat 25A | Bewamat 75A |
|---|---|---|---|
| Connection Width | DN 32 | DN 32 | DN 32 |
| Flow Rate (EN 14743) | 1.4 m³/h (6.1 gpm) | 1.8 m³/h (7.9 gpm) | 1.8 m³/h (7.9 gpm) |
| Nominal Capacity | 20 m³ × °dH (3.6 mol) | 25 m³ × °dH (4.5 mol) | 75 m³ × °dH (13.4 mol) |
| Operating Pressure | 2–8 bar (29–116 psi) | 2.5–8 bar (36.2–116 psi) | 2.5–8 bar (36.2–116 psi) |
| Salt Tank Capacity | 14 kg | 15 kg | 50 kg |
| Salt per Regeneration | 1 kg | 1.2 kg | 3.5 kg |
| Dimensions (H×W×D) | 530 × 290 × 430 mm | 640 × 390 × 560 mm | 1090 × 390 × 560 mm |
| Order Number | 12563 | 11324 | 11325 |
